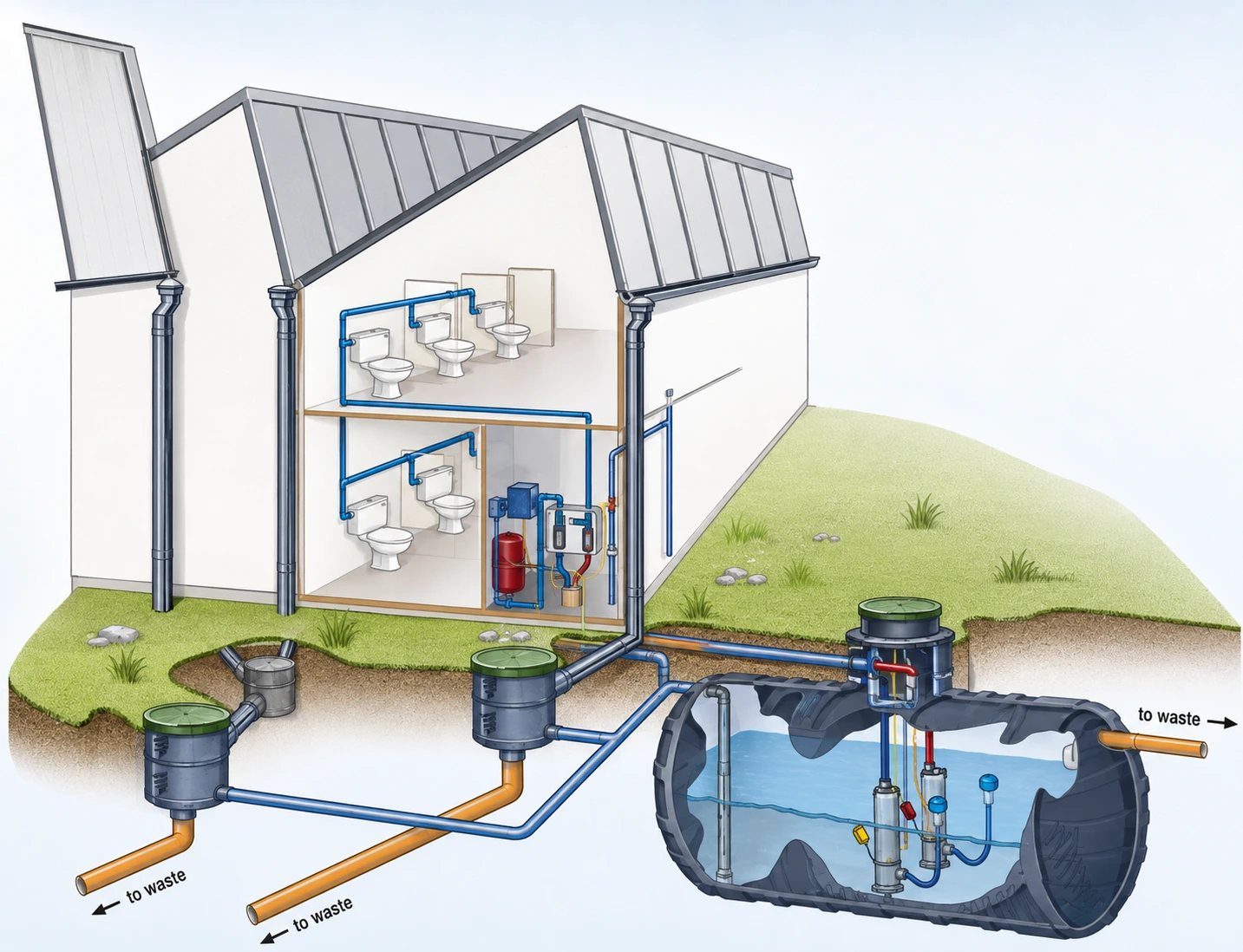

Commercial Direct Rainwater Harvesting
The RainTech® range of commercial rainwater harvesting systems
Pumping System: Features a twin-pump, "duty standby/assist" arrangement.
Pump Specifications: Pumps are custom-sized based on your specific demand and pumping distance. They are available in either fixed or variable speeds depending on your usage and preference.
Monitoring & Alerts: Comes standard with a visual beacon and an alarm output for a Building Management System (BMS). Full system monitoring is available upon request.
Customization: Additional configurations can be explored under 'optional features' below.
Contact us for bespoke specification
Dual Pumps

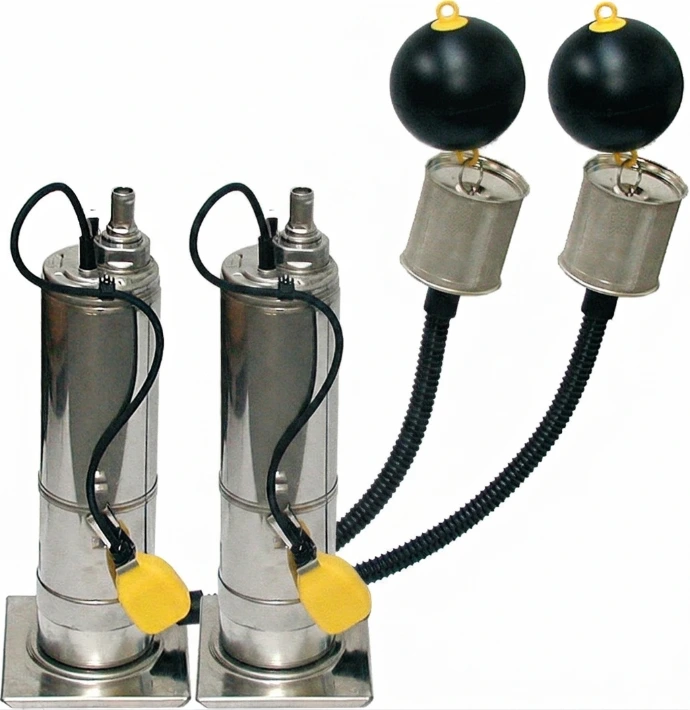

Dual Stainless Steel Pumps: The system features two submersible pumps operating in a duty/standby-assist setup.
Backup & Assistance: One pump acts as the primary unit, while the second automatically steps in to assist during high demand or take over completely if a fault occurs.
Adjustable Control: Managed by a unique pressure switch control panel with customizable start/stop pressures to suit a wide range of applications.
Professional Mains Water Back Up
In any direct system, the mains water back up is to the main rainwater tank. Flow to the tank should match the demand to ensure the pump cannot run dry. Our professional mains water back up with industrial specification solenoid valve and protective mesh inlet ensures trouble free operation and continuous supply of water to the property.
Advanced filtration
The 0.28mm (280 micron) fine filtration provided by the WISY VORTEX filter protects the tank from any debris and offers additional benefits such as increased oxygen for clearer water, and easy safe cleaning. This prevents any debris getting into the tank and breaking down in the water. The Wisy Vortex filter is unique in its operation and with its patented design, is unrivalled in terms of quality.

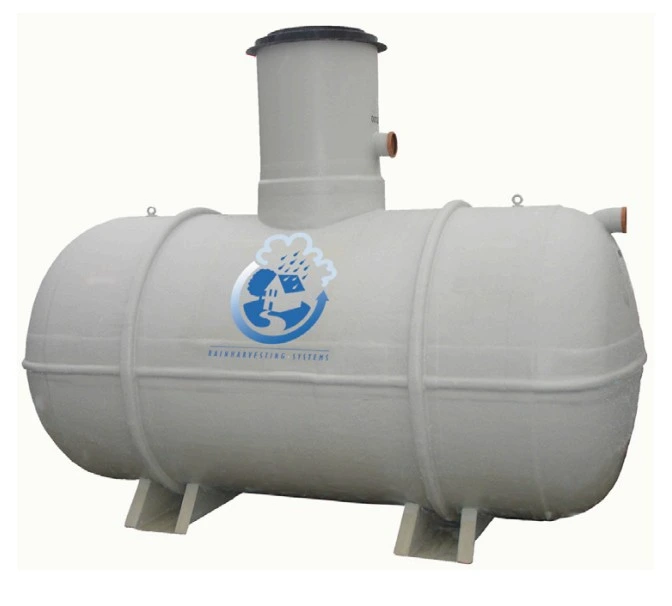

Discover moreRainTech® GRP Underground Tanks
UK made tanks manufactured to BS 4994 from high grade GRP; 100% glass fibre / resin mix with no fillers. These tanks are manufactured to our own specification to comply fully with BS 8515. This includes our unique Multisiphon overflow trap with built-in backflow protection.
Note: It is a requirement of the British Standard for rainwater harvesting that all rainwater tanks are protected against backflow. Most tanks are supplied without this feature, so it has to be added by the installer downstream of the tank itself. Our RainTech® tanks are always fitted with backflow protection.
Optional Features
The RainTech Direct system is capable of a number of additional features as below:
- UV Sterilisation (including pre-UV particulate filters)
- Full system monitoring via touch screen display or web interface.
- Soft start pumps
- Variable speed pumps
Monitoring capabilities:
- Rainwater tank water level
- Rainwater usage (via pulsed water metre)
- Mains Water consumption (via pulsed water metre)
- UV Lap status
Multi Alarm output to BMS or control panel
- Pump Failure alarm
- Excess run time for pump or mains
- Rainwater tank dry
- UV lamp strength alarm
- Web Interface
- Soft Start pump
- Low profile rainwater filter
- Jet spray cleaning facility for rainwater filter
- Automation of jet cleaning
